0.96 inch 80x160 TFT Display | BTF0096A-GHN$
● Resolution:80(H)RGB*160(V)
● Display Type:TFT/Transmissive/Normal Black
● Interface Type:4 line SPI
● Drive IC:ST7735S
● Surface Luminance:400cd/m²
● Viewing Direction:ALL
● Top:-20℃~70℃
BTF0096A-GHN$
BTF0096A-GHN$ is a 0.96” TFT LCD with 80(H)RGB*160 resolution.
It is a Normal Black Trasmissive TFT with 4-Line SPI Interface.
View angle for TFT is “ALL” and brightness is 400 cd/m²
Drive IC used in TFT is ST7735S

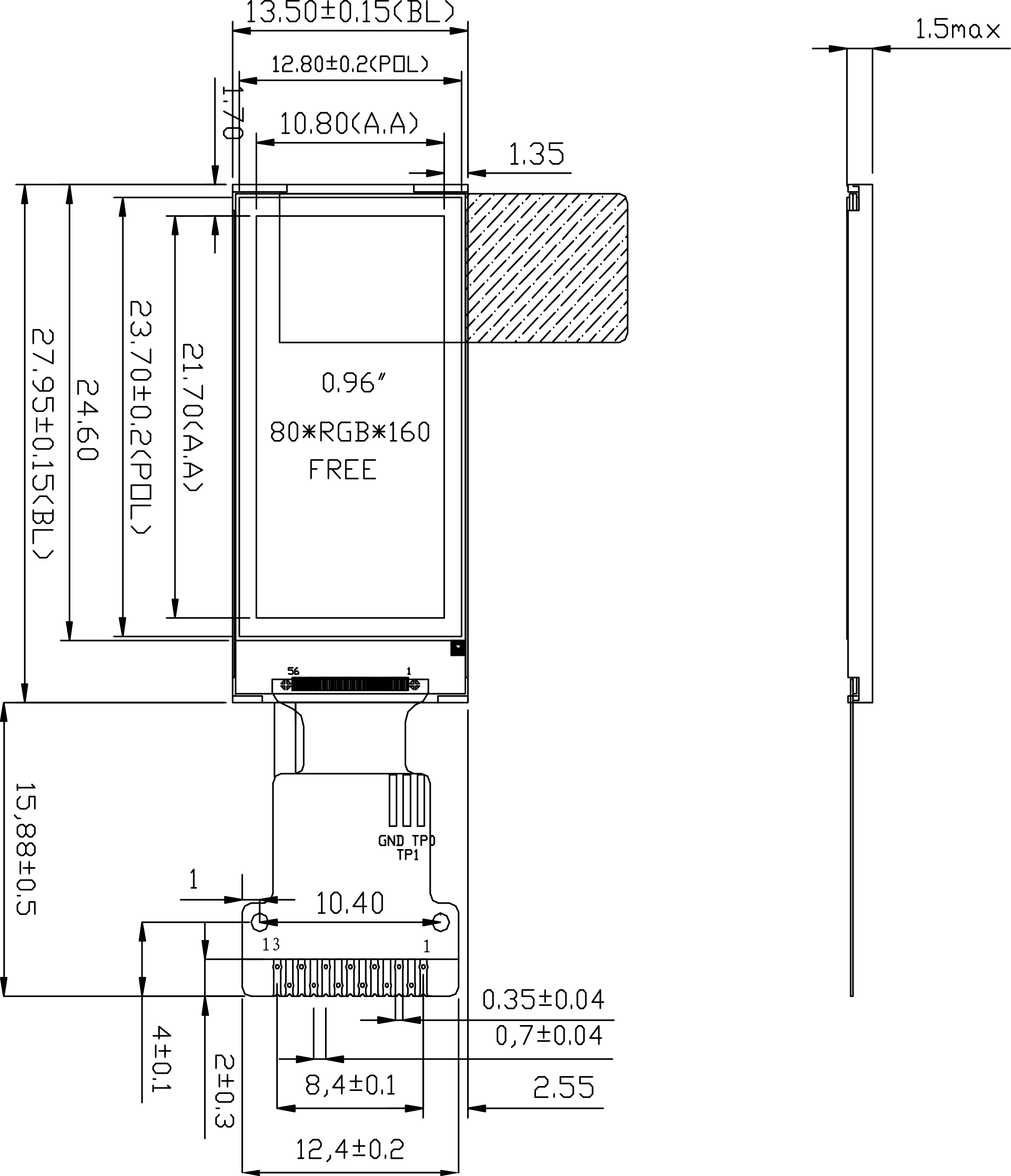

● Mechanical Data
1. Module(WxHxT)(mm):13.5*27.95*1.5
2. Active Area(mm):10.8*21.7
3. LED Numbers:1 LED

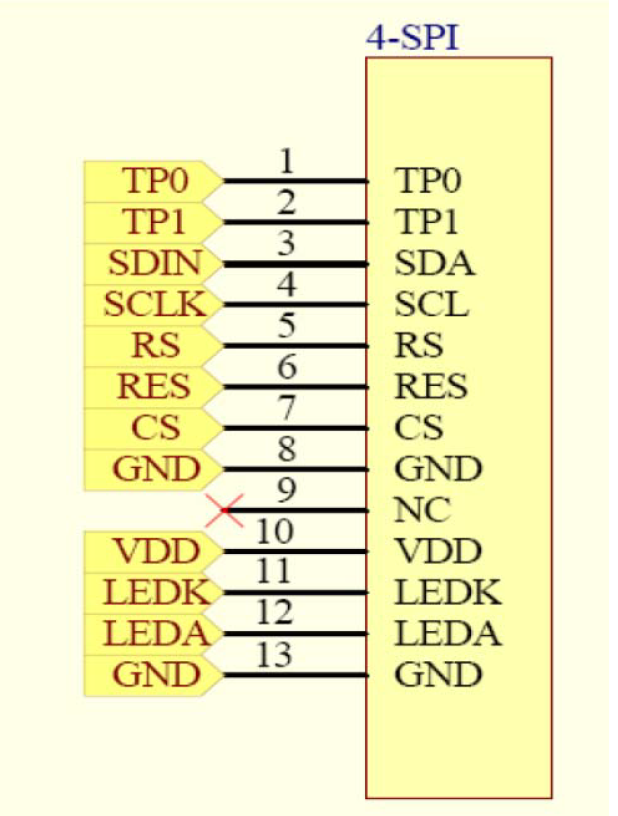

● Interface Pin Function
|
No |
Symbol |
Description |
|
1 |
TP0 |
Touch Pin, If not used, please open this pin. |
|
2 |
TP1 |
Touch Pin, If not used, please open this pin. |
|
3 |
SDA |
SPI interface input/outpur pin. |
|
4 |
SCL |
This pin is used to be serial interface clock. |
|
5 |
RS |
Display data/command selection pin in 4-line serial interface. |
|
6 |
RESET |
This signal will reset the device,Signal is active low. |
|
7 |
CS |
Chip selection pin,Low enable,High disable. |
|
8 |
GND |
Power Ground. |
|
9 |
NC |
No Connect. |
|
10 |
VDD |
Power Supply for Analog |
|
11 |
LEDK |
LED Canthode |
|
12 |
LEDA |
LED Anode |
|
13 |
GND |
Power Ground. |
