16x2 Character LCD display | BC1602A
● COB with metal frame
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
5. 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED array / edge B/L,EL/BL
● Option: +3.3V single power supply
● Option: Negative voltage
● Option: LCD Vop Fix on 5V(-20℃ ~+70℃)
BC1602A

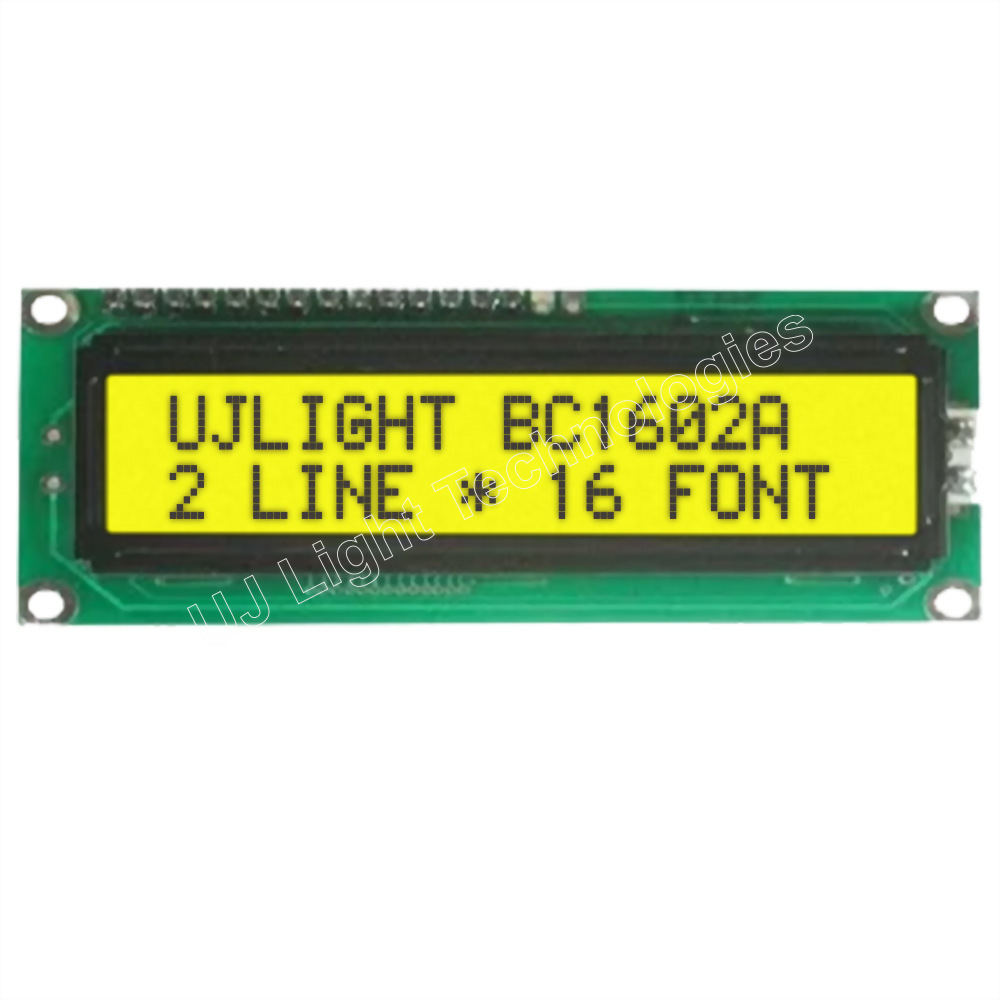

BC1602A is 16x2 characters LCD Module (LCM) made using Chip on Board (COB) method and comes with metal frame.
Module dimension of BC1602A is (80.00x36.00) mm and viewing area is (66.0x16.0) mm.
It has built-in controller ST7066 (or equivalent) that provides different language options, English, Japanese, Chinese, Western & Eastern European, Russian etc.
It is available without backlight or with LED, EL backlight options.
BC1602A LCD module is available in gray, yellow/green and blue LCD color.

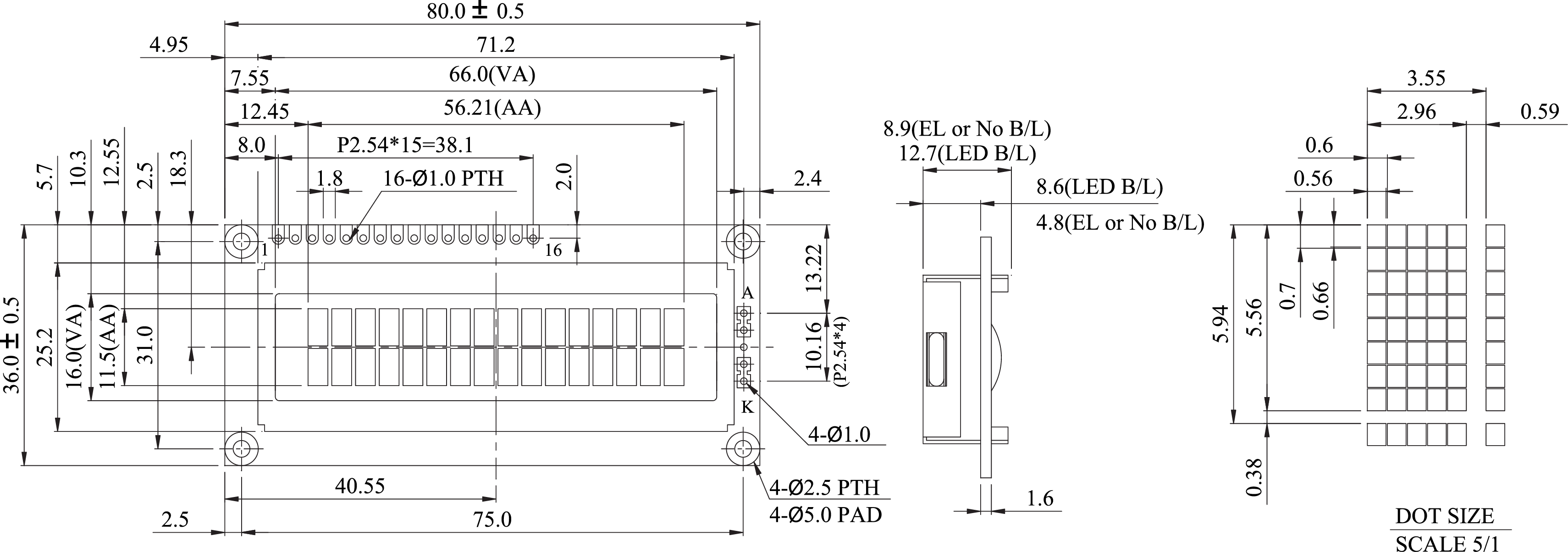

● Mechanical Data
Item
Standard Value
Unit
Module Dimension
80.0 x 36.0
mm
Viewing Area
66.0 x 16.0
mm
Dot Size
0.56 x 0.66
mm
Character Size
2.96 x 5.56
mm
● Pin Assignment
Pin
Symbol
Function
1
Vss
GND
2
Vdd
+5V (+3V option)
3
Vo
Contrast adjustment
4
RS
H/L register select signal
5
R/W
H/L read/write signal
6
E
H─>L enable
signal
7~14
DB0~7
H/L data bus line
15
A/Vee
Power Supply for B/L(+)/Negative voltage output
16
K
Power supply for B/L (GND)
