COG LCD

COG (Chip on Glass) LCD Modules

COG(Chip-On-Glass) is an advanced packaging technology that connects ICs and substrates and it is the Flip-chip mounting directly on the glass , so it was called COG (Chip on Glass).

The COG with benefits of light weight, simplify the process and can meet Fine Pitch requirements.

Ujlight offers graphic type in resolution of 128x32 ,128x64 to 160x160 and COG LCD character types including size of 16x2, 20x2 formats.

Display Format	Photo	Model No.	Outline Dimension (mm)	View Area (mm)	Active Area (mm)	Duty (mm)	Interface	IC Part No. or Compatible with Controller
16x02		BO1602E	103.0x36.0	99x24	94.84x20	16	I2C	ST7032i
20x02		BO2002A	89.0x30.6	85x18.6	73.5x11.5	16	I2C	ST7036i
98x64		BO9864B2	34x34	31x22.5	27.42x21.1	64	I2C	ST7578i
128x64		BO12864B2	72x47	68x36	63.97x31.97	64	Parallel	ST7565
128x64		BO12864D2	52x42	48x31	44.77x27.49	64	Parallel	ST7571
128x64		BO12864E3	80x54	70.7x38.8	66.52x33.24	64	Parallel/SPI	ST7567
128x64		BO12864E4	80x54	70.7x38.8	66.52x33.24	64	Parallel	ST7567
128x64		BO12864E5	80x54	70.7x38.8	66.52x33.24	64	Parallel/SPI	ST7567
128x64		BO12864H	34x28.72	29.58x17.98	25.58x15.98	64	Parallel/SPI	ST7565
128x64		BO12864H1	34x28.72	29.58x17.98	25.58x15.98	64	SPI	ST7567S
128x64		BO12864I	56x47	52x33.5	47.34x26.86	64	Parallel/SPI	ST7565
128x64		BO12864K	55.2x39.8	45.2x27	40.92x24.28	64	Parallel/SPI	ST7565R
128x64		BO12864L	62.8x49	57.6x36.7	53.73x31.97	64	SPI	ST7567

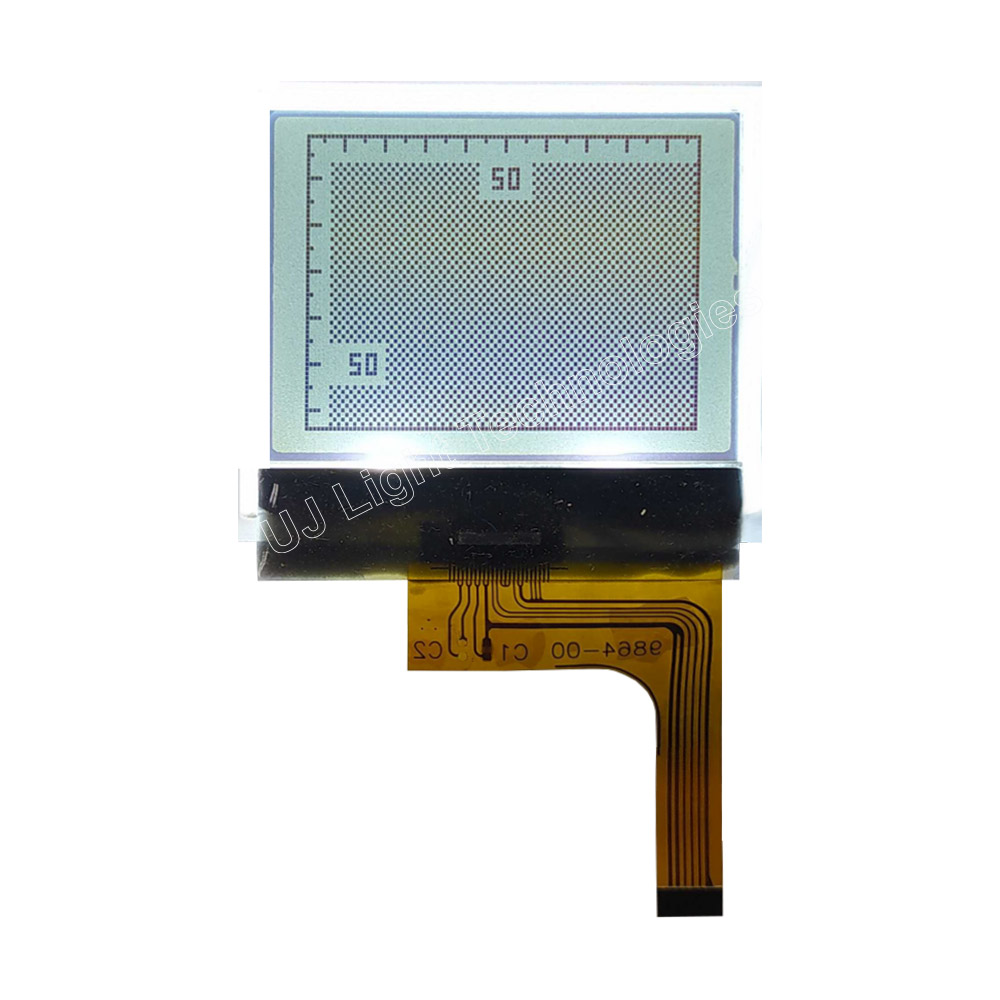

98x64 COG LCD Display Module | BO9864B2

Model : BO9864B2

● COG package
● Built-in controller ST7578i
● +3.0 V power supply
● 1/64 duty cycle
● On chip LCD booster
● Option LED B/L

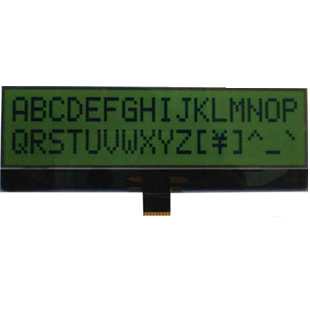

16x2 COG LCD Display Module | BO1602E

Model : BO1602E

● COG LCD 16x2
● Character LCD
● COG package
● 5x7 dots with cursor
● Built-in controller ST7032i
● +3.3V single power supply
● 1/16 duty cycle
● I2C series interface

20x2 COG LCD Display Module | BO2002A

Model : BO2002A

● COG LCD 20x2
● Character LCD
● COG package
● 5x7 dots with cursor
● Built-in controller ST7036i
● +3V single power supply
● 1/16 duty cycle
● I2C series interface

128x64 COG LCD Display Module | BO12864E5

Model : BO12864E5

● COG package
● Built-in controller ST7567S
● +3.3V single power supply
● 1/64 duty cycle
● On chip LCD booster
● Option: LED edge backlight

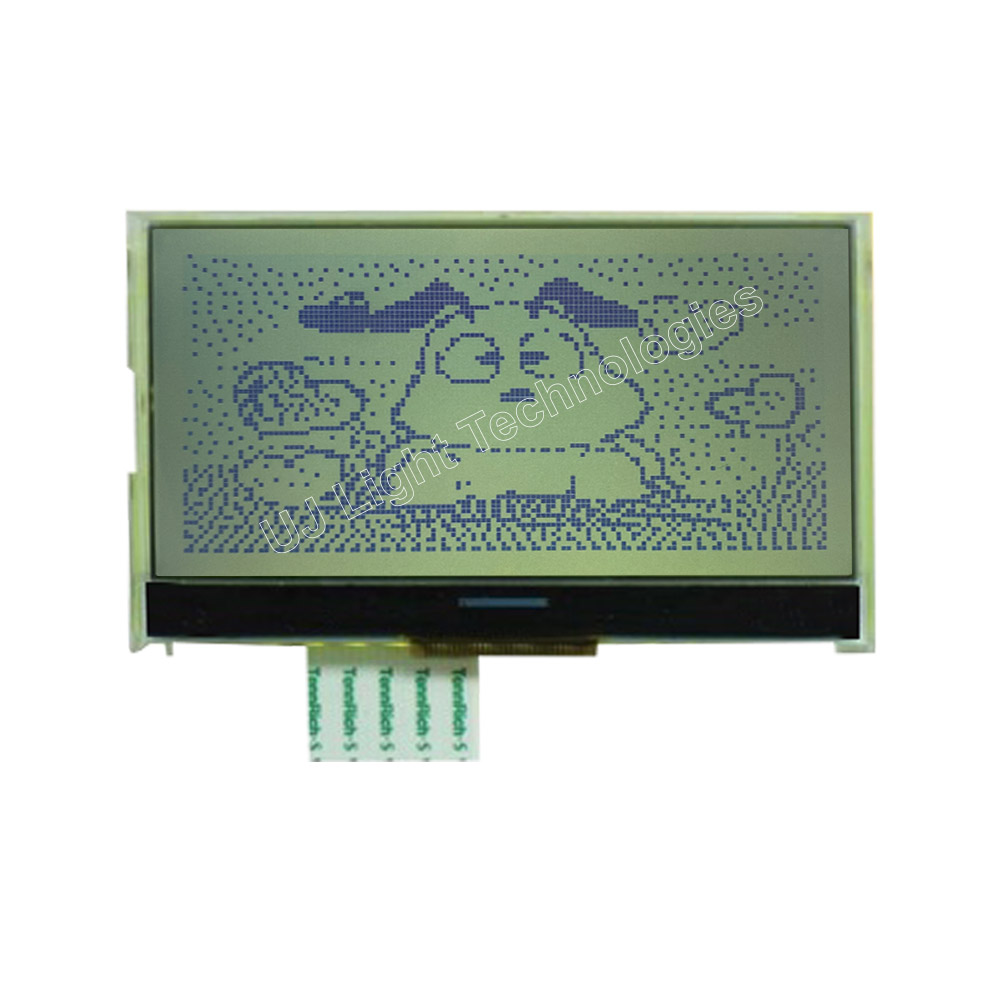

128x64 COG LCD Modules | BO12864E4

Model : BO12864E4

COG package
●Built-in controller ST7565S
●+3.3 V power supply
●1/64 duty cycle
●On chip LCD booster
●Option LED B/L

128x64 COG Display Modules | BO12864E3

Model : BO12864E3

●COG package
●Built-in controller ST7567S
●+3.3 V power supply
●1/64 duty cycle
●On chip LCD booster
●Option LED B/L

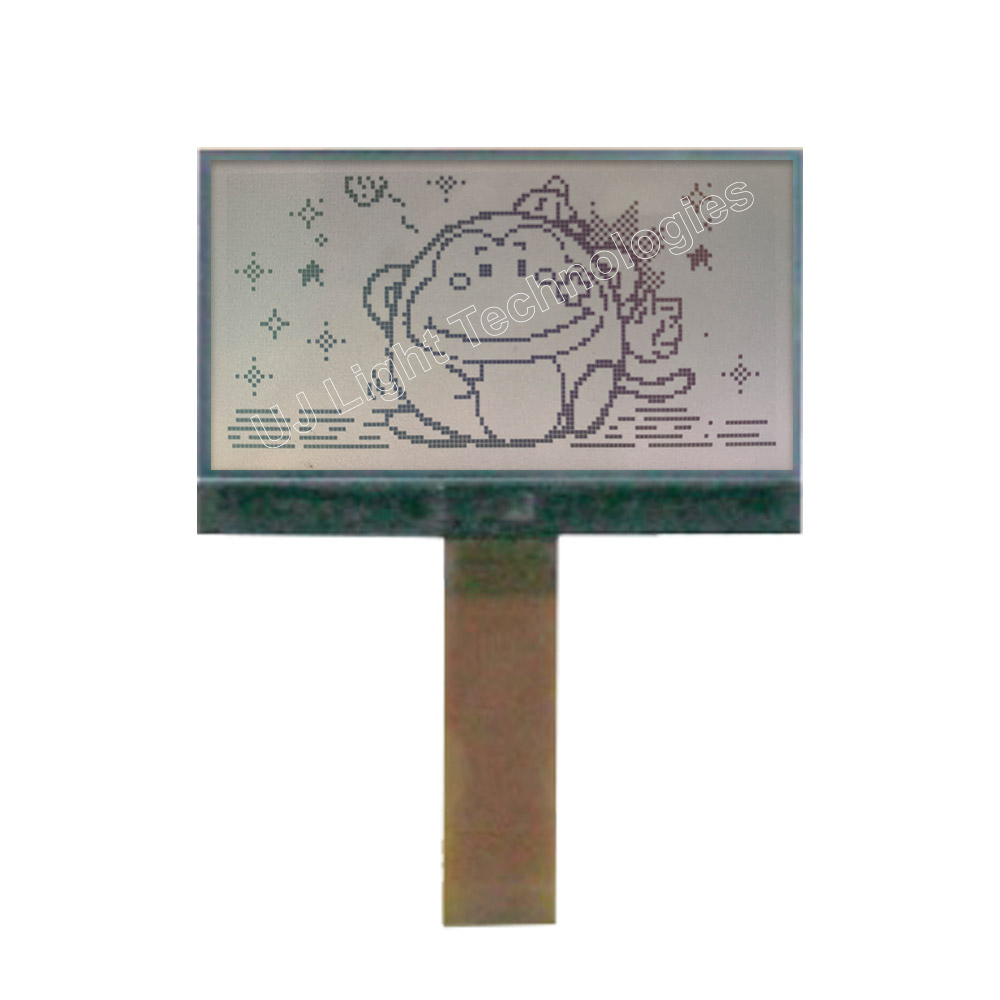

128x64 COG LCD Display Module | BO12864B2

Model : BO12864B2

COG package
● Built-in controller ST7565
● +3.3 V power supply
● 1/64 duty cycle
● On chip LCD booster
● Option LED B/L
