122x32 Graphic LCD Display Module | BG12232A
● COB with metal frame
● Built-in internal clock
● Built-in controller SBN1661G-M18 or equivalent
● 1/32duty cycle
● +5V single power supply
● LED B/L pins:19/20, or A/K or 1/2
● Option: LED, EL B/L
● Option: +3V single power supply
● Built-in internal clock
● Built-in controller SBN1661G-M18 or equivalent
● 1/32duty cycle
● +5V single power supply
● LED B/L pins:19/20, or A/K or 1/2
● Option: LED, EL B/L
● Option: +3V single power supply
Model :
BG12232A
BG12232A
BG12232A is a monochrome 122x32 graphic LCD display module made using Chip on Board (COB) method and comes with metal frame.
It has a built-in internal clock and built-in controller SBN1661G-M18 or equivalent.

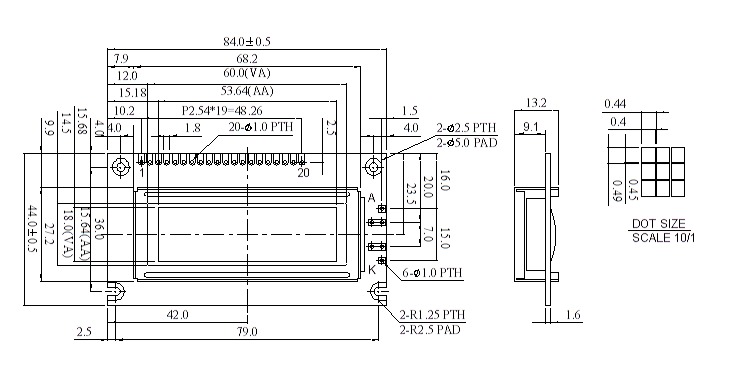

Module dimension of BG12232A is (84x44) mm and viewing area is (60x18) mm.
It supports 5V power supply and provides option of 3V power supply as well.
