128x64 OLED LCD modules | BL12864G2
●OLED Display 128 x 64 dots
●Built-in controller SPD0301
●+3.3 V power supply
●1/64 duty cycle
●Color: white or yellow
●Option: 6800, SPI, I2C interface
●Built-in controller SPD0301
●+3.3 V power supply
●1/64 duty cycle
●Color: white or yellow
●Option: 6800, SPI, I2C interface
Model :
BL12864G2

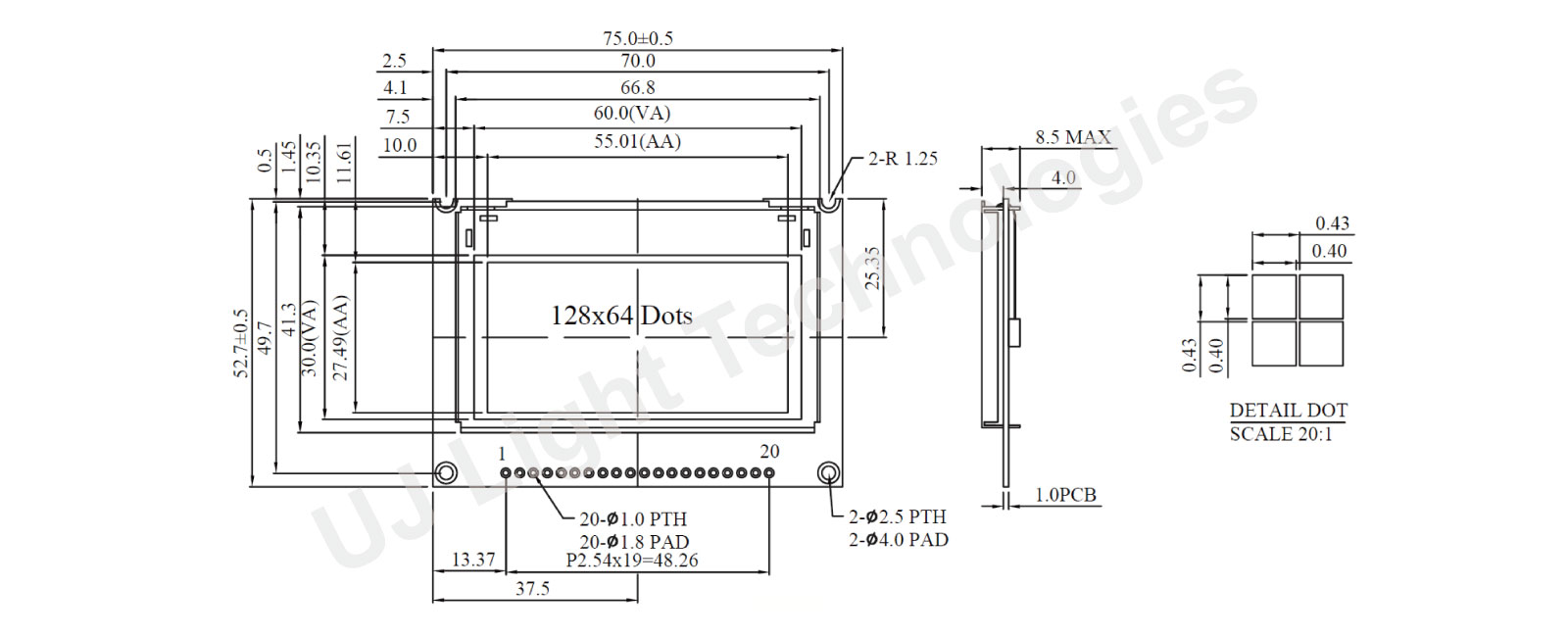

The module dimension of UL12864G2 is 75.0 x 52.7 mm and Active Area is 55.01 x 27.49 mm.
It has built-in IC SPD0301 and it supports Parallel / SPI / I²C interface.
UL12864G2 required + 3.3 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL12864G2 is 2.42 inch 128x64 dots Graphic OLED Display Modules.
It has built-in IC SPD0301 and it supports Parallel / SPI / I²C interface.
UL12864G2 required + 3.3 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL12864G2 is 2.42 inch 128x64 dots Graphic OLED Display Modules.
