16x2 Character LCD display | BC1602L
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins: 17/18
● No Negative Voltage Option
● DIP module
BC1602L
BC1602L is 16x2 characters LCD Module (LCM) made using Chip on Board (COB) method and comes with metal frame.

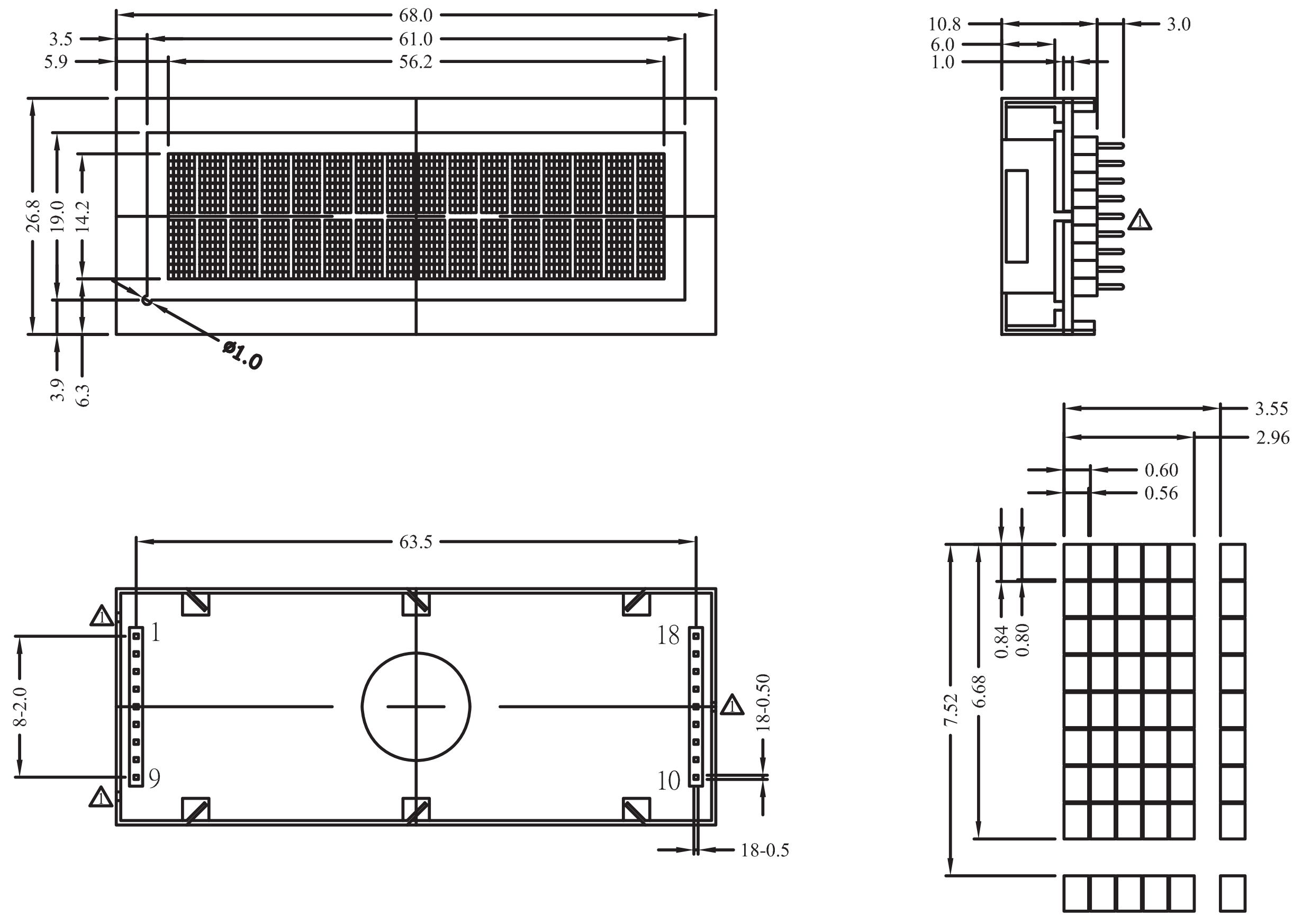

Module dimension of BC1602L is (68x26.8) mm and viewing area is (61x19) mm.
It has built-in controller ST7066 (or equivalent) that provides different language options, English, Japanese, Chinese, Western & Eastern European, Russian etc.
● Mechanical Data
|
Item |
Standard Value |
Unit |
|
Module Dimension |
68.0 x 26.8 |
mm |
|
Viewing Area |
61.0 x 19.0 |
mm |
|
Dot Size |
0.56 x 0.80 |
mm |
|
Character Size |
2.96 x 6.68 |
mm |
● Pin Assignment
Pin
Symbol
Function
1
1VSS
GND
2
VDD
+5V
3
VO
Contrast adjustment
4
RS
H/L register select signal
5
R/W
H/L read/write signal
6
E
H àL enable signal
7~14
DB0~D87
H/L data bus line
15
NC
NO connection
16
NC
NO connection
17
A
Power supply for B/L (+)
18
K
Power supply for B/L (GND)
