160x128 Graphic LCD Display Module | BG160128B
● Built-in controller UCi6963c or equivalent
● +5V single power supply
● 1/128 duty cycle
● Option: CCFL backlight,LED white backlight
● Option: negative voltage
BG160128B
BG160128B is a monochrome 160x128 graphic LCD display module made using SMT PCB with metal frame.
It has a built-in controller UCi6963c or equivalent.
Module dimension of BG160128B is (129x102) mm and viewing area is (101x82) mm.
It supports 5V power supply with option of negative voltage.

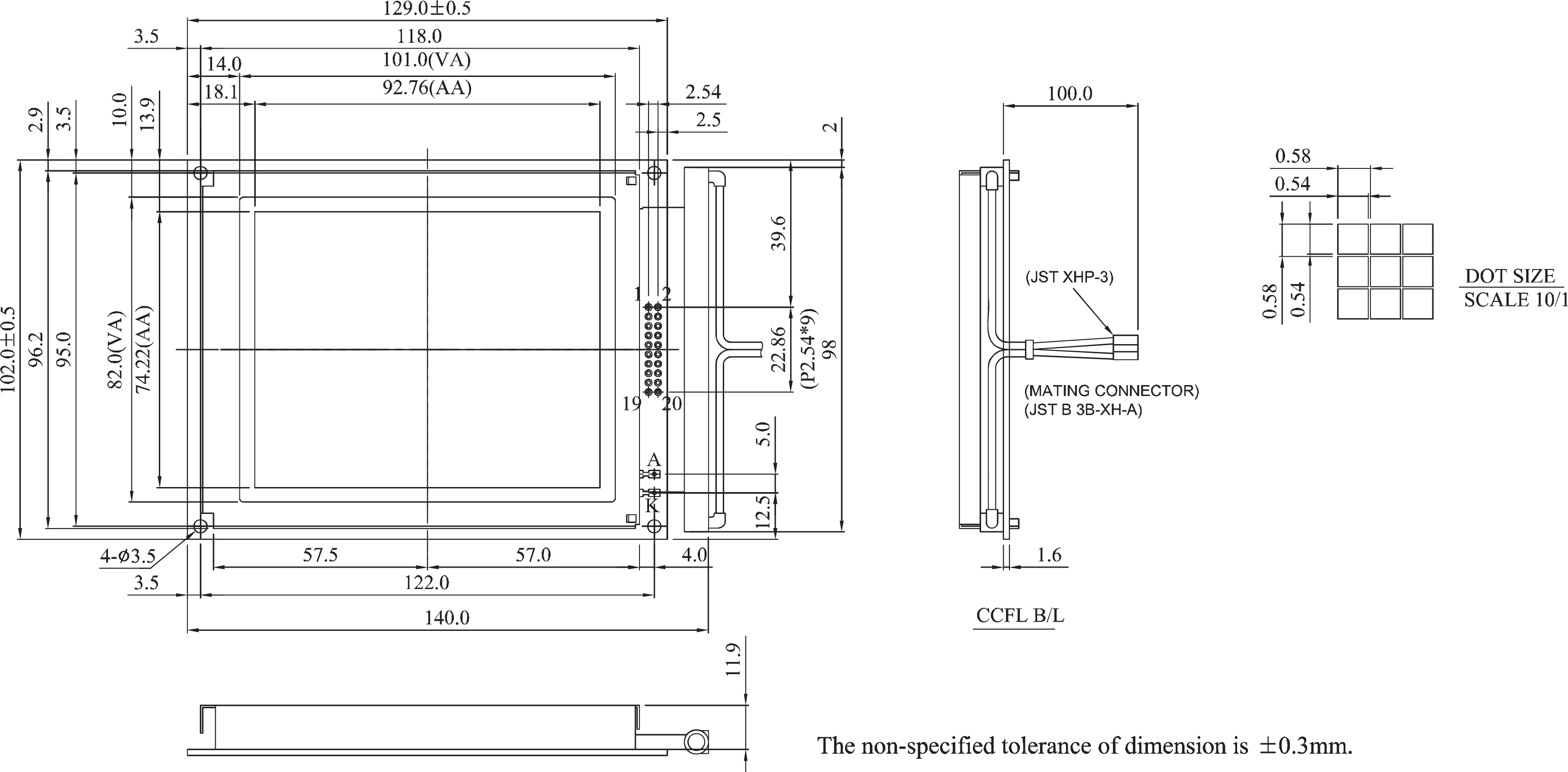

● Mechanical Data
|
Item |
Standard Value |
Unit |
|
Module Dimension |
129.0 x 102.0 |
mm |
|
Viewing Area |
101.0 x 82.0 |
mm |
|
Dot Size |
0.54 x 0.54 |
mm |
|
Dot Pitch |
0.58 x 0.58 |
mm |
● Pin Assignment
Pin
Symbol
Function
1
FGND
Frame ground
2
Vss
Logic power supply (GND)
3
Vdd
Logic power supply (+5V)
4
Vadj
Contrast Adjustment
5
Vee
Negative Voltage output (-16V)
6
/WR
Data write
7
/RD
Data read
8
/CE
Chip enable
9
C/D
Command/Data read/write
10
/HALT
Clock halt signal
11
/RST
Reset LCD module signal
12~19
DB0~7
Data bus line
20
NC
No connection
