28x32 OLED LCD Modules | BL12832B
● OLED Display 128 x 32 dots
● Built-in controller SSD 1305
● +2.4 ~ +3.5 V single power supply
● 1/32 duty cycle
● Color: white
● SPI Interface
● Built-in controller SSD 1305
● +2.4 ~ +3.5 V single power supply
● 1/32 duty cycle
● Color: white
● SPI Interface
Model :
BL12832B

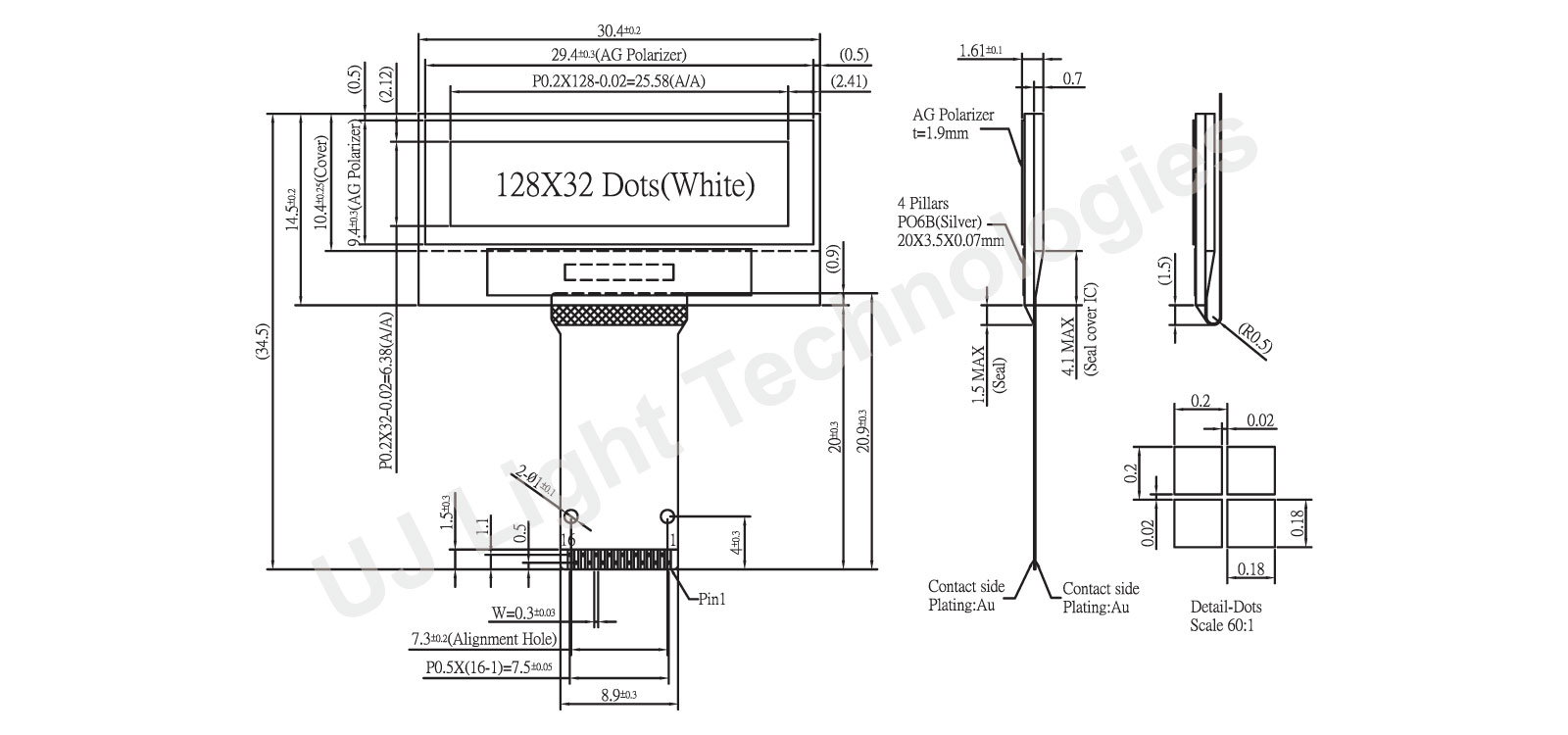

The module dimension of BL12832B is 30.4 x 14.5 mm and Active Area is 25.58 x 6.38 mm.
It has built-in IC SSD1305 and it supports SPI interface.
BL12832B required +2.4 ~ +3.5 V single power supply.
BL12832B is built using COG (Chip on glass) structure that makes it light weight.
It is recommend for application such as OLED for wearable device, and OLED for portable devices.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.

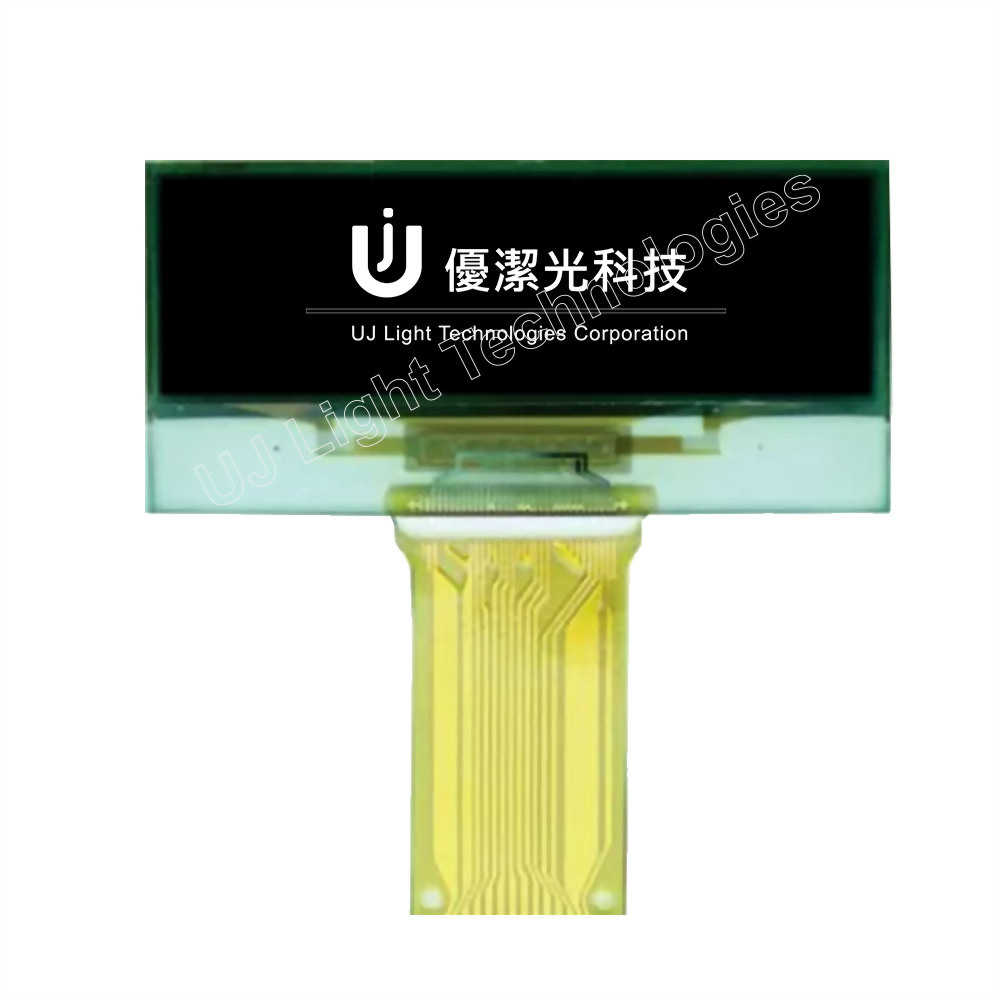

BL12832B is 1.04 inch 128x32 dots Graphic OLED Display Modules.
It has built-in IC SSD1305 and it supports SPI interface.
BL12832B required +2.4 ~ +3.5 V single power supply.
BL12832B is built using COG (Chip on glass) structure that makes it light weight.
It is recommend for application such as OLED for wearable device, and OLED for portable devices.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
BL12832B is 1.04 inch 128x32 dots Graphic OLED Display Modules.
