160x80 Graphic LCD Display Module | BG16080A
● Built-in controller SAP1024B or equivalent
● +5V single power supply, with built-in negative voltage
● 1/80 duty cycle
● Option: LED, EL B/L
● Option: Built-in negative voltage
BG16080A
BG16080A is a monochrome 160x80 graphic LCD display module made SMT PCB with metal frame, silver frame.
It has a built-in controller SAP1024B or equivalent.
Module dimension of BG16080A is (100x54) mm and viewing area is (72.3x37.8) mm.
It supports 5V power supply with built-in negative voltage.

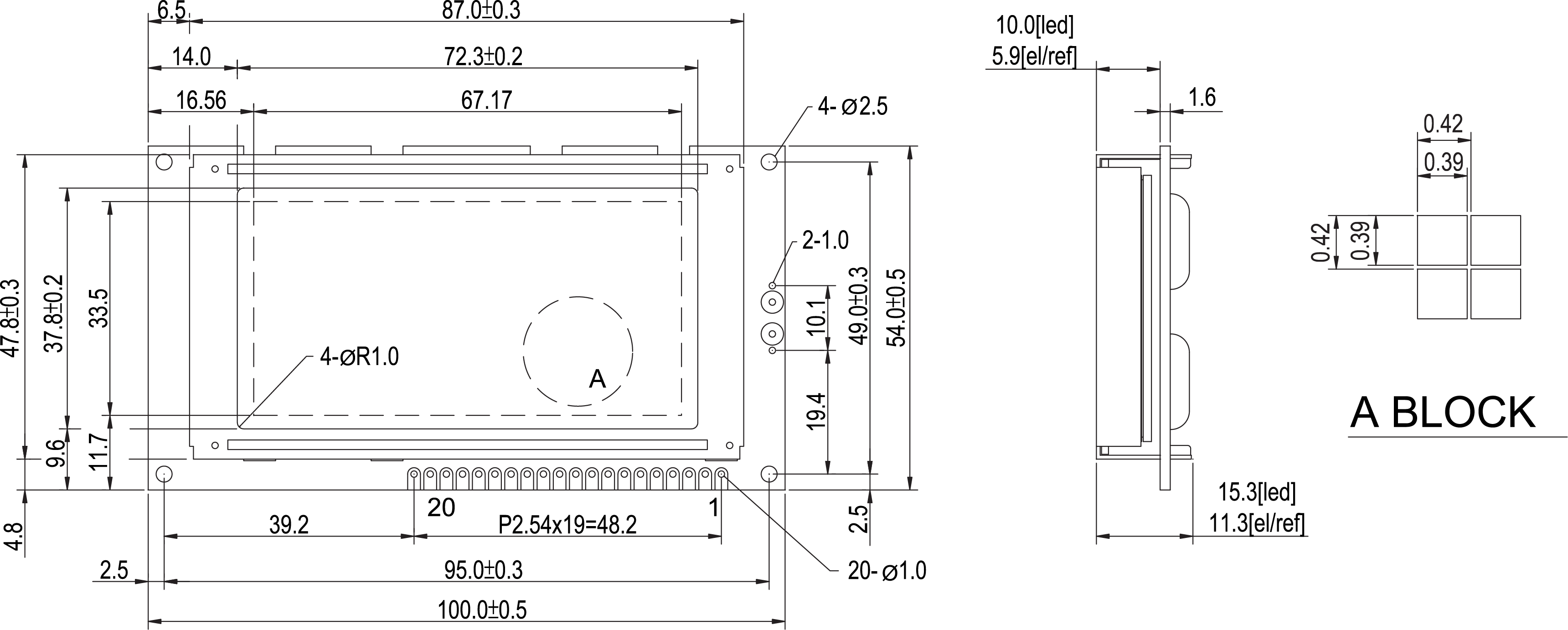

● Mechanical Data
|
Item |
Standard Value |
Unit |
|
Module Dimension |
100.0 x 54.0 |
mm |
|
Viewing Area |
72.3 x 37.8 |
mm |
|
Dot Size |
0.39 x 0.39 |
mm |
|
Dot Pitch |
0.42 x 0.42 |
mm |
● Pin Assignment
Pin
Symbol
Function
1
Vee
Negative voltage output (-11V)
2
Vss
Power supply (GND)
3
Vdd
Power supply (+5V)
4
Vo
Contrast adjustment
5
/WR
L : data write
6
/RD
L : data read
7
/CE
Chip enable
8
C/D
Command/data read/write
9
/RES
Reset signal
10~17
DB0~7
Data bus line
18
FS
Font selection (H:6x8, L:8x8)
19
A
Power supply for B/L (+)
20
K
Power supply for B/L (GND)
