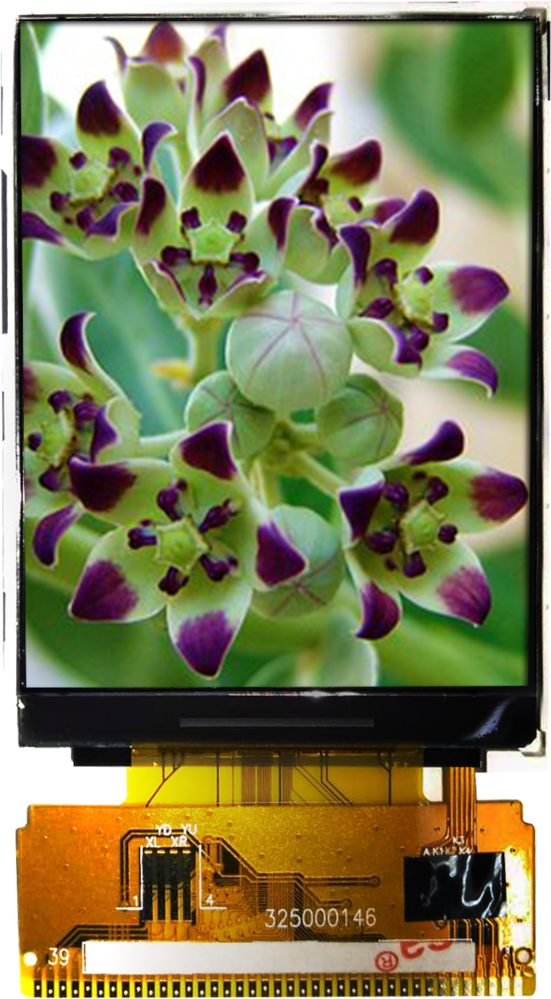

2.40 inch 240x320 TFT Display | BTF024A-EHN$
● Resolution:240*RGB*320
● Display Type:TFT/Transmissive/Normally white
● Colors:262K
● Interface Type:MCU
● Drive IC:ST7789V
● Surface Luminance:350cd/m²
● Top:-20℃~70℃
BTF024A-EHN$
BTF024A-EHN$ is a 2.4” TFT LCD with 240*320 RGB resolution.
It is a Normally White, trasmissive type TFT with 8/16 bits80 parallel interface.
View angle for TFT is “6H” and brightness is 350 cd/m²
Drive IC used in TFT is ST7789V.
Operating temperature range is from -20℃ ~ +70℃

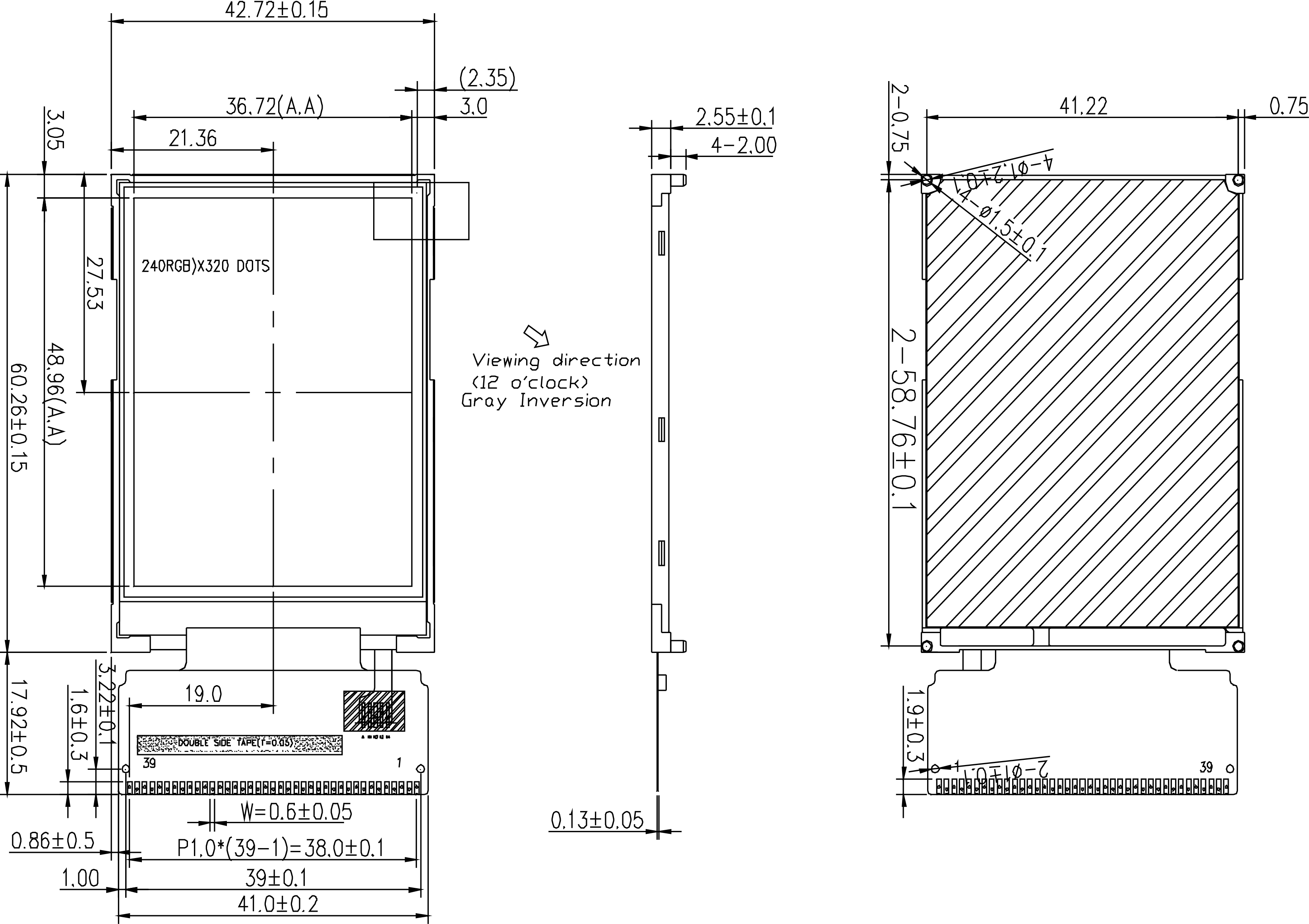

● Mechanical Data
1. Module(WxHxT)(mm):42.72*60.26*2.55
2. Active Area(mm):36.72*48.96
3. LED Numbers:4 LEDs
● Interface Pin Function
No
Symbol
I/O
Description
1
GND
P
Power ground
2
LEDA
P
Power for LED backlight anode
3
LEDK4
P
Power for LED backlight cathode
4
LEDK3
P
Power for LED backlight cathode
5
LEDK2
P
Power for LED backlight cathode
6
LEDK1
P
Power for LED backlight cathode
7
GND
P
Power ground
8
NC
-
No connection
9
IM0
I
Select the MCU interface mode
10
RESET
I
Reset signal
11
D15
I/O
Data input
12
D14
I/O
Data input
13
D13
I/O
Data input
14
D12
I/O
Data input
15
D11
I/O
Data input
16
D10
I/O
Data input
17
D9
I/O
Data input
18
D8
I/O
Data input
19
D7
I/O
Data input
20
D6
I/O
Data input
21
D5
I/O
Data input
22
D4
I/O
Data input
23
D3
I/O
Data input
24
D2
I/O
Data input
25
D1
I/O
Data input
26
D0
I/O
Data input
27
RD
I
Read signal
28
WR
I
Write signal
29
RS
I
Command/data select
30
CS
I
Chip select
31
NC
-
No connection
32
VDDI
P
Low voltage power supply for interface logic circuits
33
VCI
P
High voltage power supply for analog circuit blocks
34
NC
-
No connection
35
NC
-
No connection
36
NC
-
No connection
37
NC
-
No connection
38
NC
-
No connection
39
GND
P
Power ground
