8.00 inch 800x600 TFT Display | BTF080A-AWN$
● Resolution:800*RGB*600
● DisplayType:TFT/Transmissive/Positive
● Interface Type:24-BIT RGB
● Drive IC:HX8264-D/HX8696-A
● Surface Luminance:500cd/m²
● Top:-20℃~70℃
BTF080A-AWN$
BTF080A-AWN$ is a 8.0" TFT LCD with 800*600 RGB resolution.
It is a Positive Trasmissive TFT with 24-BIT RGB Interface.
View angle for TFT is “12H” and brightness is 500 cd/m²
Drive IC used in TFT is HX8264-D/HX8696-A

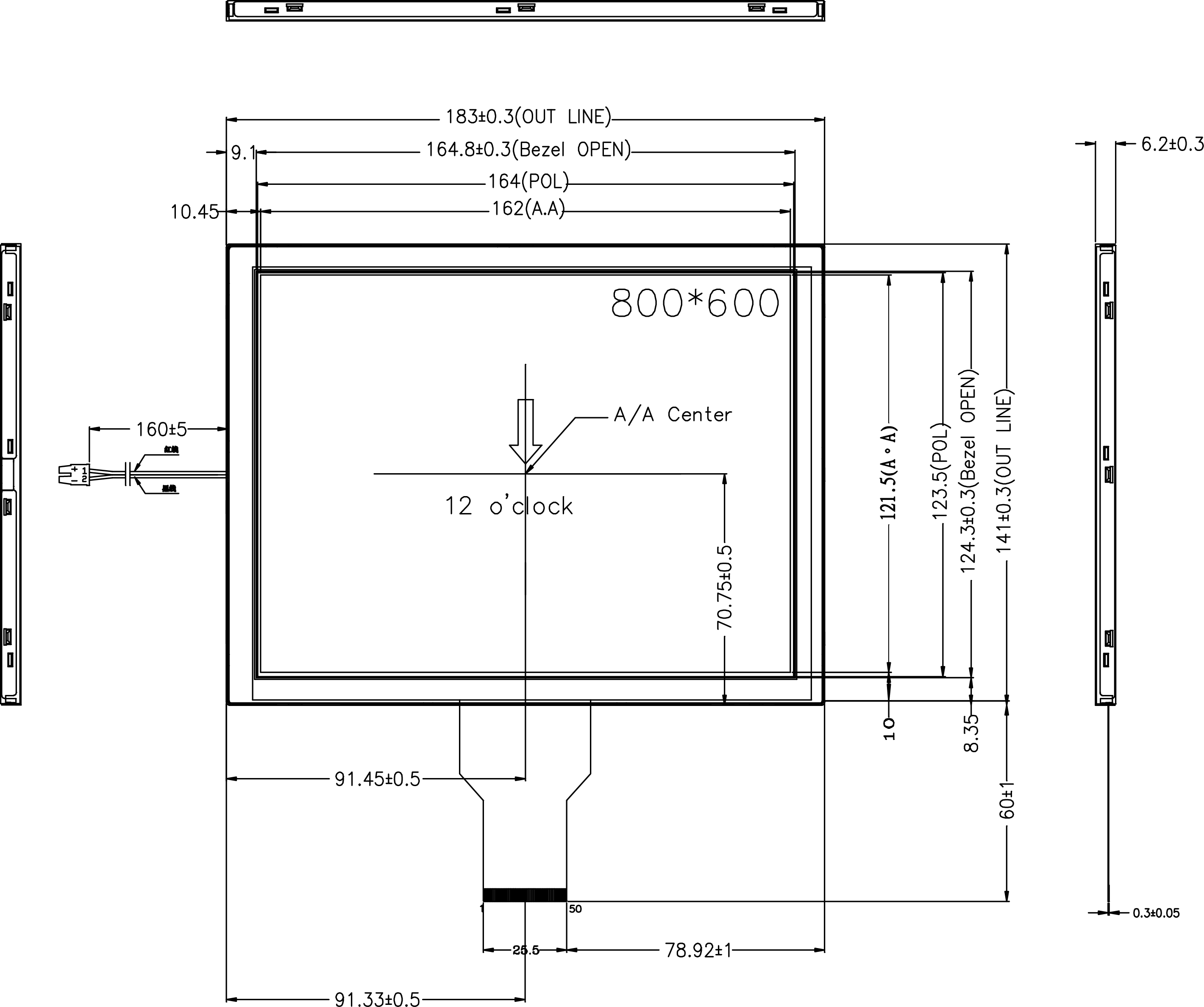

● Mechanical Data
1. Module(WxHxT)(mm):183.0*141.0*6.2
2. Active Area(mm):162.0*121.5
3. LED Numbers:27LEDs(8.4~9.9V/180mA)
● Interface Pin Function
No
Symbol
No
Symbol
1
LED+
37
DCLK
2
LED+
38
GND
3
LED-
39
L/R
4
LED-
40
U/D
5
GND
41
VGH
6
VCOM
42
VGL
7
VCC
43
AVDD
8
MODE
44
RESET
9
DE
45
NC
10
VS
46
VCOM
11
HS
47
DITHB
12~19
B7~B0
48
GND
20~27
G7~G0
49
NC
28~35
R7~R0
50
NC
36
GND
