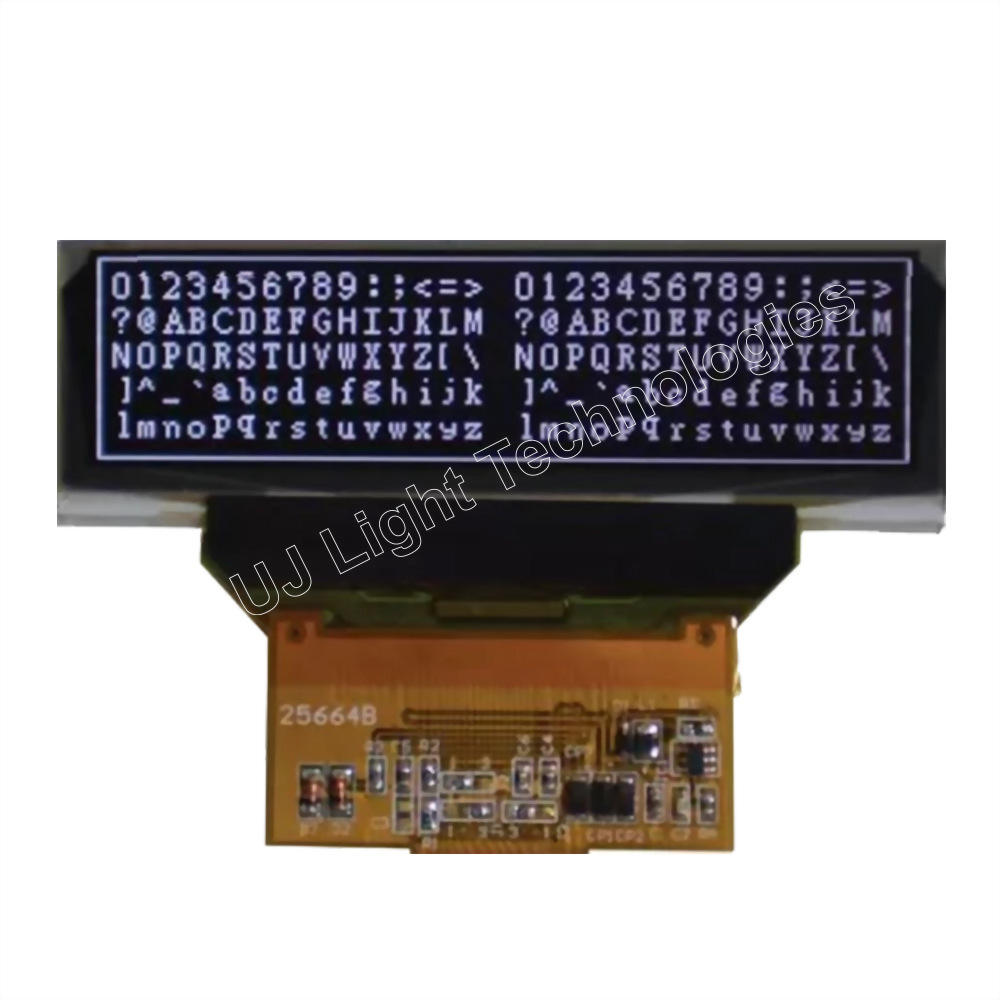

256x64 OLED LCD Modules | BL25664B
● OLED Display 256 x 64 dots
● Built-in controller SSD1322
● + 3.3 V single power supply with Built-in positive voltage
● 1/64 duty cycle
● Serial or parallel interface
● Color: white
● Option: external positive voltage for LCD
● 16 Gray Scale
● Built-in controller SSD1322
● + 3.3 V single power supply with Built-in positive voltage
● 1/64 duty cycle
● Serial or parallel interface
● Color: white
● Option: external positive voltage for LCD
● 16 Gray Scale
Model :
BL25664B

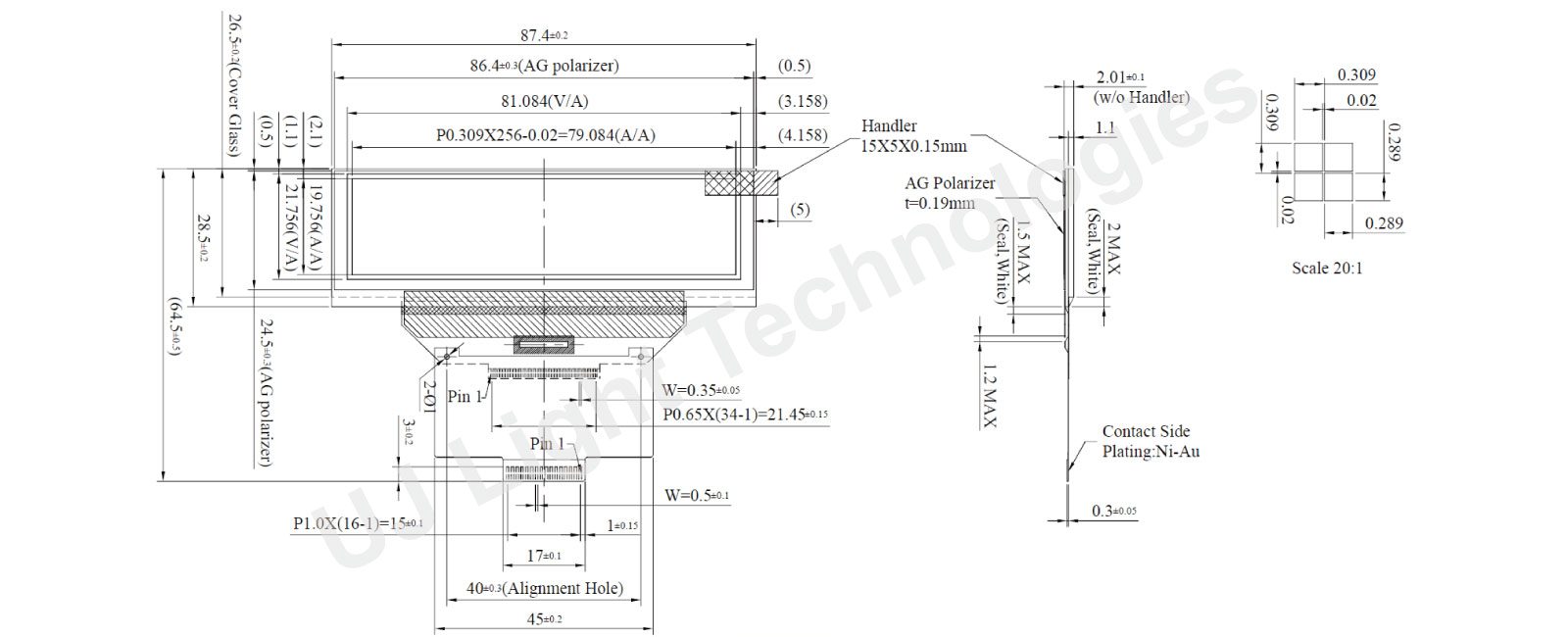

The module dimension of UL25664B is 87.4 x 28.5 mm and Active Area is 79.084 x 19.756 mm.
It has built-in IC SSD1322 and it supports serial or parallel interface.
UL25664B required + 3.3 V single power supply with Built-in positive voltage.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL25664B is 3.21 inch 256X64 dots Graphic OLED Display Modules.
It has built-in IC SSD1322 and it supports serial or parallel interface.
UL25664B required + 3.3 V single power supply with Built-in positive voltage.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL25664B is 3.21 inch 256X64 dots Graphic OLED Display Modules.
