98x64 COG LCD Display Module | BO9864B2
● COG package
● Built-in controller ST7578i
● +3.0 V power supply
● 1/64 duty cycle
● On chip LCD booster
● Option LED B/L
● Built-in controller ST7578i
● +3.0 V power supply
● 1/64 duty cycle
● On chip LCD booster
● Option LED B/L
Model :
BO9864B2
BO9864B2 is 98X64 GRAPHIC COG (chip on glass) LCD Module with built-in ST7578i controller.
BO9864B2 98X64 COG LCM Includes on chip LCD booster.
COG (chip on glass) is an LCD packaging technology where the controller is mounted directly onto the LCD glass and PCB is not required. COG makes LCD compact, consume less power and also bring down the cost.
It is recommend for compact applications

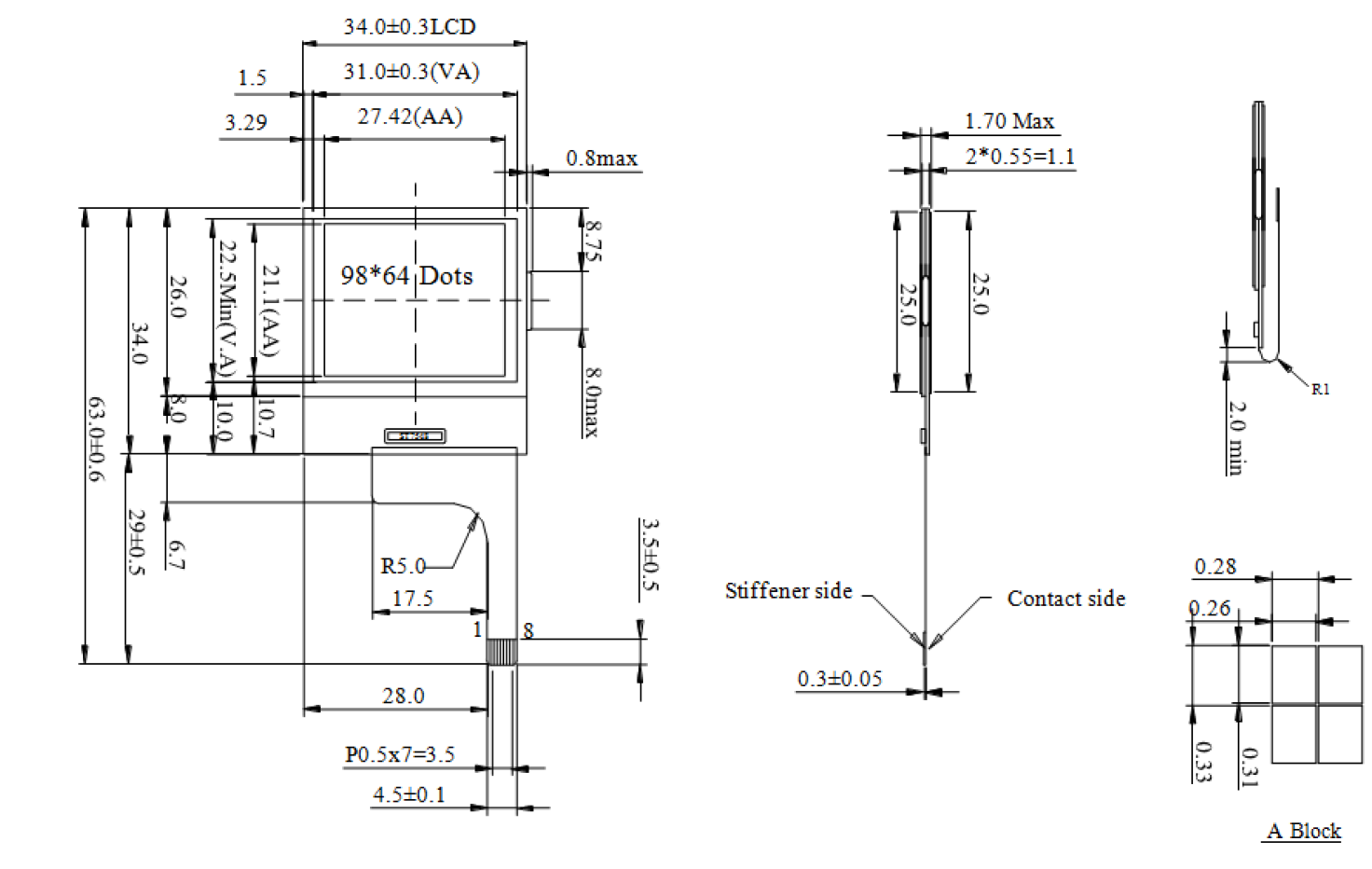

Module dimension of UO9864B2 is (36.2 x 64.1) mm and viewing area is (31.0 x 22.5) mm.
BO9864B2 98X64 COG LCM Includes on chip LCD booster.
COG (chip on glass) is an LCD packaging technology where the controller is mounted directly onto the LCD glass and PCB is not required. COG makes LCD compact, consume less power and also bring down the cost.
It is recommend for compact applications
Module dimension of UO9864B2 is (36.2 x 64.1) mm and viewing area is (31.0 x 22.5) mm.
