240x64 Graphic LCD Display Module | BG24064A
● Built in controller UCi6963c or equivalent
● +5V power supply
● 1/64 duty
● LED B/L pins: A / K
● Option: Temperature compensation
● Option: LED, EL B/L
● Option: External negative voltage(built-in, extemal)
BG24064A

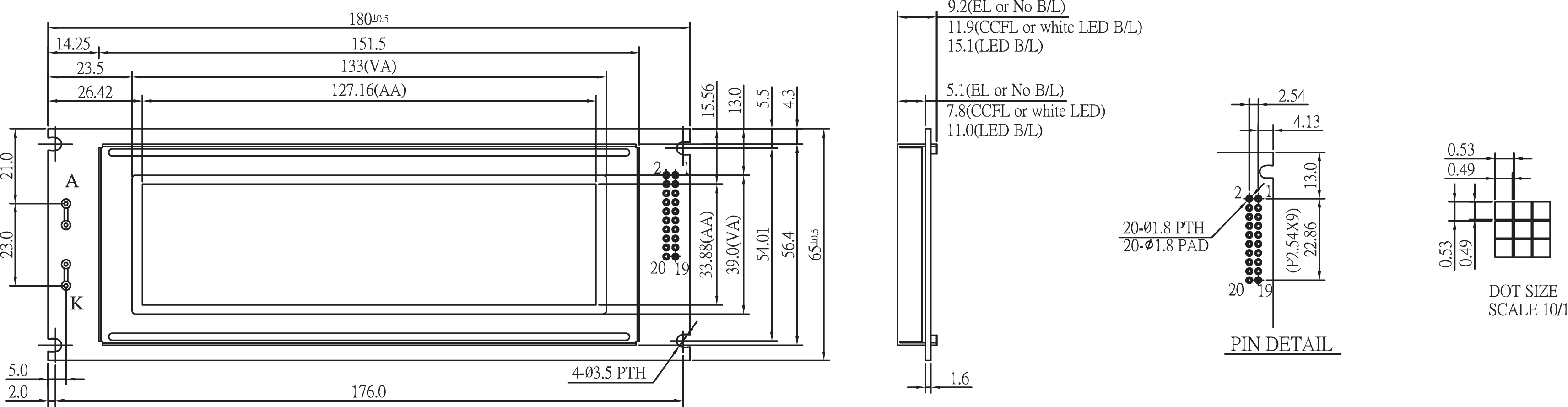

BG24064A is a monochrome 240x64 graphic LCD display module made SMT PCB with metal frame.
It has a built-in controller UCi6963c or equivalent.
Module dimension of BG24064A is (180x65) mm and viewing area is (133x39) mm.
It supports 5V power supply with option of external negative voltage.
● Mechanical Data
|
Item |
Standard Value |
Unit |
|
Module Dimension |
180.0 x 65.0 |
mm |
|
Viewing Area |
133.0 x 39.0 |
mm |
|
Dot Size |
0.49 x 0.49 |
mm |
|
Dot Pitch |
0.53 x 0.53 |
mm |
● Pin Assignment
Pin
Symbol
Function
1
FG
Frame ground
2
Vss
Power supply (GND)
3
Vdd
Power supply (+5V)
4
Vo
Contrast Adjustment
5
/WR
Data write
6
/RD
Data read
7
/CE
Chip enable
8
C/D
Command/data
9
Vee
Negative Voltage output (-13.6V)
10
/RST
Reset signal
11~18
DB0~7
Data bus line
19
FS
Font select (H:6x8 L:8x8)
20
NC
No connection
