128x96 OLED LCD Modules | BL12896D
● OLED Display 128 RGB x 96 dots
● Built-in controller SSD1351U3
● 2.4V ~ 3.5 V power supply
● 1/96 duty cycle
● Color: 262K Color
● Built-in controller SSD1351U3
● 2.4V ~ 3.5 V power supply
● 1/96 duty cycle
● Color: 262K Color
Model :
BL12896D

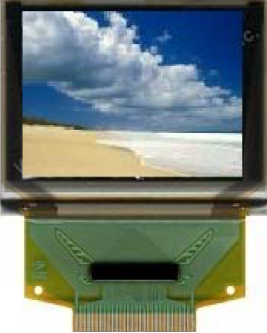

BL128696D is 1.27 inch 128x96 dots Graphic OLED Display Modules.

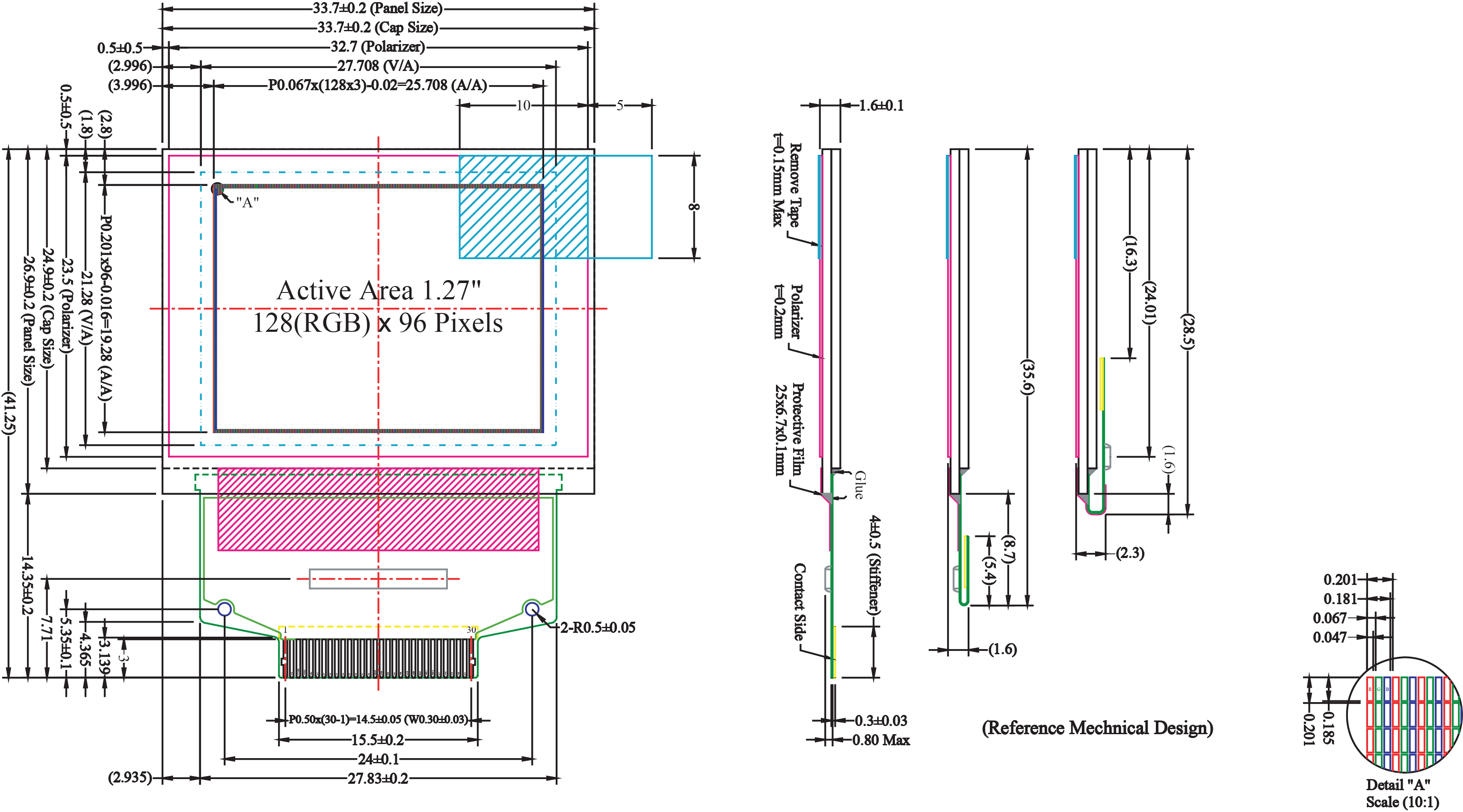

The module dimension of BL128696D is 33.7 x 26.9 mm and Active Area is 25.708 x 19.28 mm.
It has built-in IC SSD1351U3 and it supports Parallel/ SPI interface.
BL128696D required 2.4V ~ 3.5 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
The module dimension of BL128696D is 33.7 x 26.9 mm and Active Area is 25.708 x 19.28 mm.
It has built-in IC SSD1351U3 and it supports Parallel/ SPI interface.
BL128696D required 2.4V ~ 3.5 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
