160x128 OLED LCD Modules | BL160128A
● OLED Display 160 x 128 dots
● Built-in controller SSD1353
● + 3.3V single power supply,
with Built-in positive voltage
● 1/128 duty cycle
● Color: 262K color
● Option: external positive voltage for LCD
● Option: SPI interface
● Built-in controller SSD1353
● + 3.3V single power supply,
with Built-in positive voltage
● 1/128 duty cycle
● Color: 262K color
● Option: external positive voltage for LCD
● Option: SPI interface
Model :
BL160128A

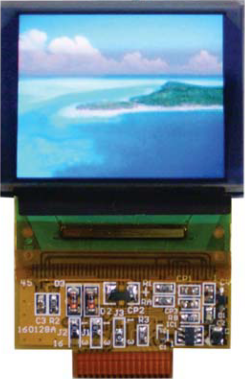

BL160128A is 1.77 inch 160 x 128 dots RGB Graphic OLED Display Modules.

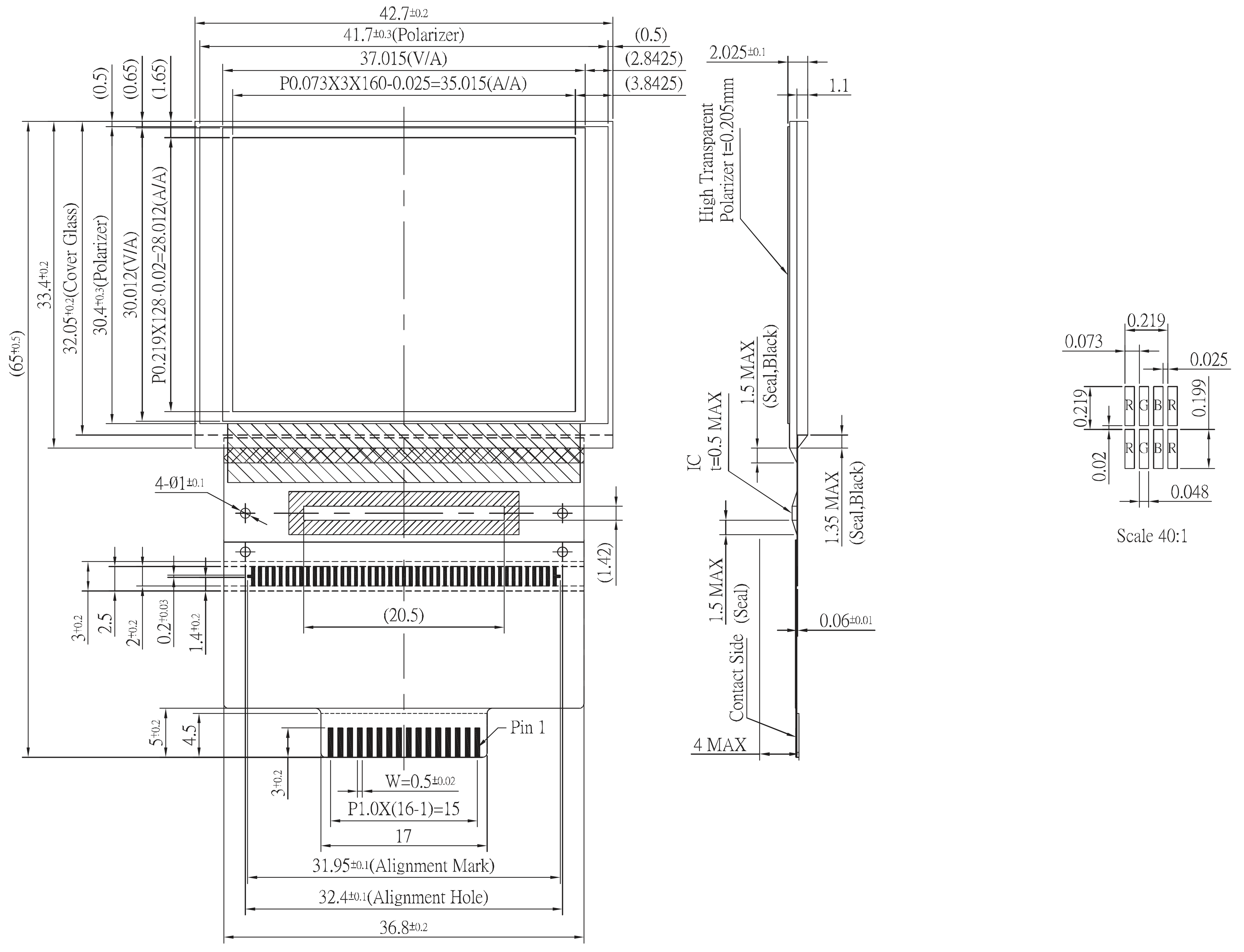

The module dimension of BL160128A is 42.7 x 33.4 mm and Active Area is 35.015 x 28.012 mm.
It has built-in IC SSD1353 and it supports Parallel/ SPI interface.
BL160128A required + 3.3V single power supply, with Built-in positive voltage.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
BL64128A is 1.77 inch 160 x 128 dots RGB Graphic OLED and offers 262K Color.
