256x64 OLED LCD Modules | BL25664D
● OLED Display 256 x 64 dots
● Built-in controller SSD1322
● +2.4~ +3.5 V single power supply
● 1/64 duty cycle
● Color: Monochrome with 16Gray Scales(Green)
● Interface: Parallel, 3-/4-wire SPI
● Built-in controller SSD1322
● +2.4~ +3.5 V single power supply
● 1/64 duty cycle
● Color: Monochrome with 16Gray Scales(Green)
● Interface: Parallel, 3-/4-wire SPI
Model :
BL25664D

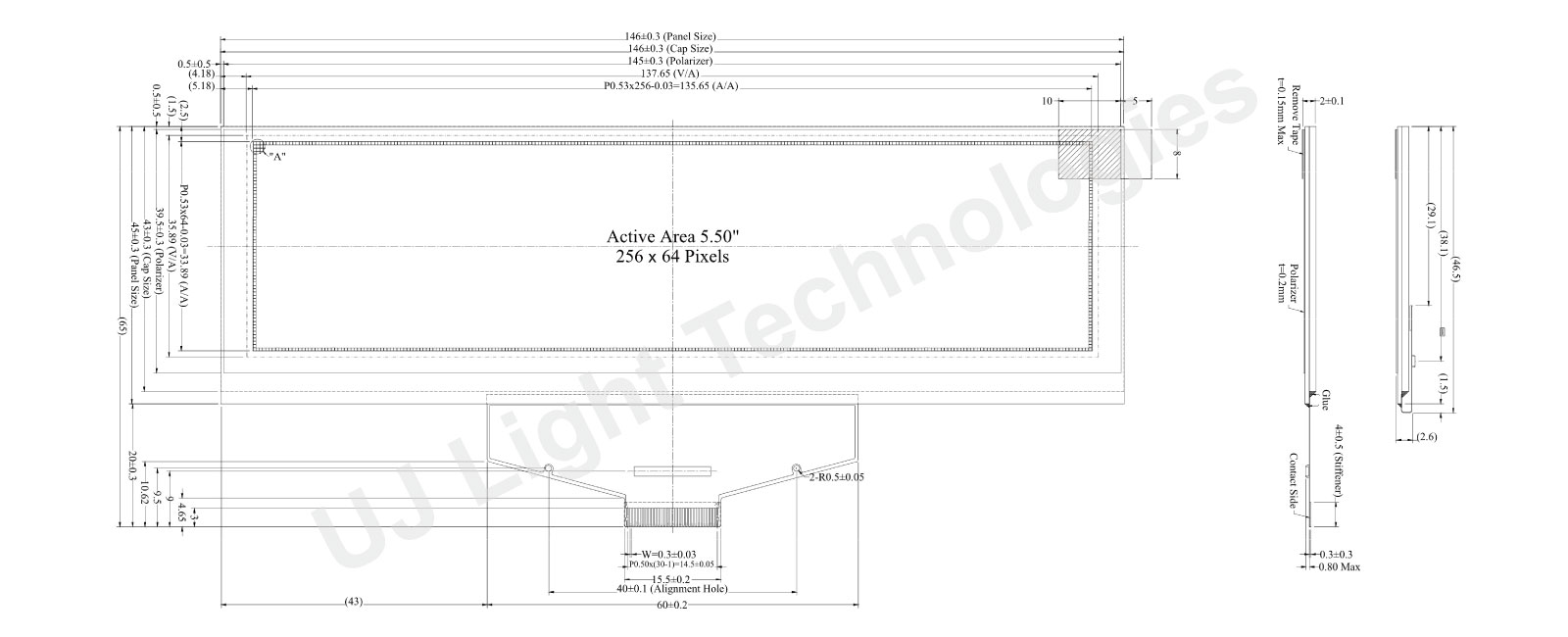

The module dimension of UL25664D is 146.0 x 65.00 mm and Active Area is 135.65 x 33.89 mm.
It has built-in IC SSD1322 and it supports parallel or 3-/4-wire SPI interface.
UL25664D required +2.4~ +3.5 V single power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL25664D is 5.5 inch 256X64 dots Graphic OLED Display Modules.
It has built-in IC SSD1322 and it supports parallel or 3-/4-wire SPI interface.
UL25664D required +2.4~ +3.5 V single power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL25664D is 5.5 inch 256X64 dots Graphic OLED Display Modules.
