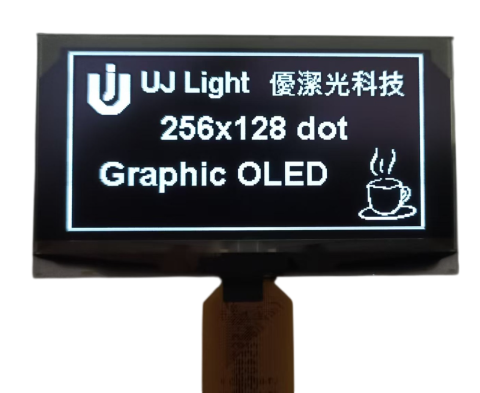

256x128 OLED LCD Modules | BL256128A
●Resolution:256 × 128 dots
●Display Size: 2.7" diagonal (module dimensions approx. 71.86 × 73 mm)
●Color : 16 Gray Scale ,White
●Controller IC: Built-in SSD1363 controller
●Power Supply: Vdd= +3.3 V ,Vcc=15V( for Panel)
●Interface: Supports Parallel / SPI interface options
●Display Size: 2.7" diagonal (module dimensions approx. 71.86 × 73 mm)
●Color : 16 Gray Scale ,White
●Controller IC: Built-in SSD1363 controller
●Power Supply: Vdd= +3.3 V ,Vcc=15V( for Panel)
●Interface: Supports Parallel / SPI interface options
Model :
BL256128A
The 256×128 Gray Scale OLED Display Module offers a slim form factor, high image quality, and exceptional reliability — making it ideal for use in modern smart devices and industrial applications.
