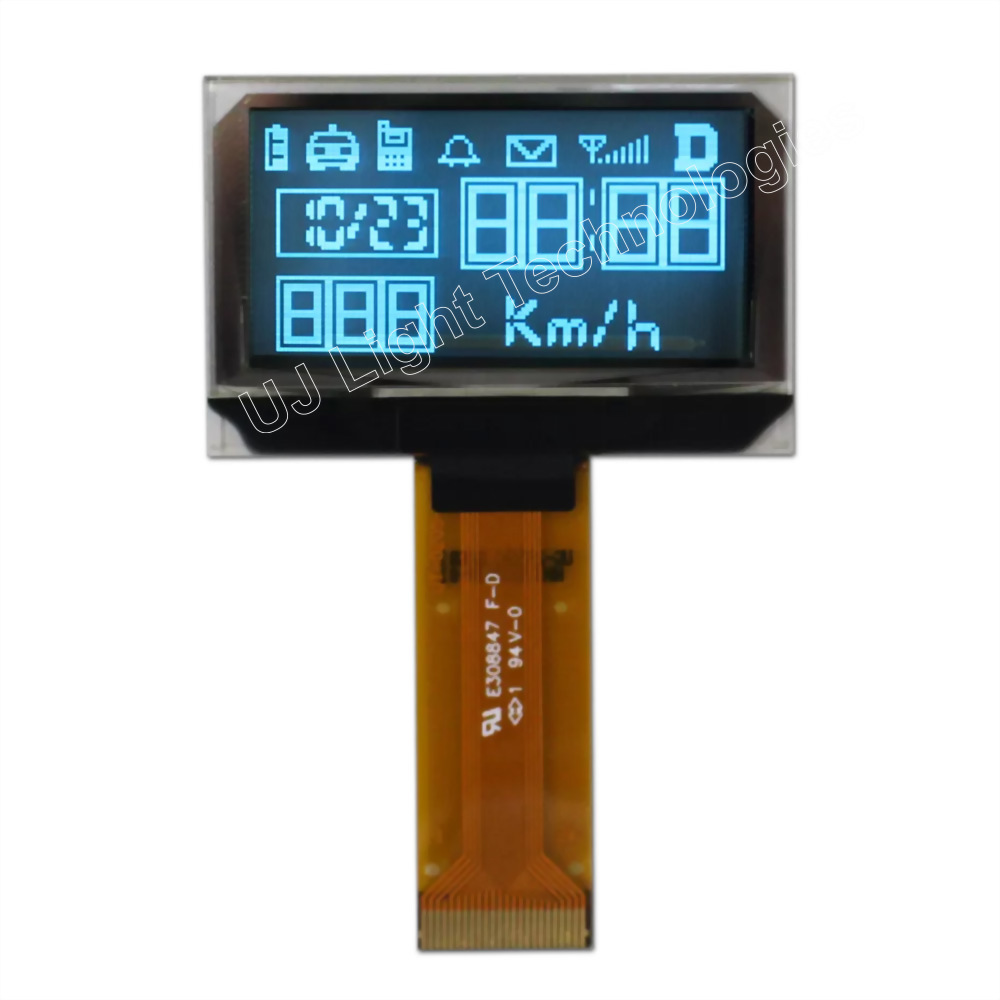

128x56 OLED LCD Modules | BL12856A
●OLED Display 128 x 56 dots
●Built-in controller SSD1309
●1.65V ~ 3.3 V power supply
●Transparent OLED
●Color: Light Blue
●Built-in controller SSD1309
●1.65V ~ 3.3 V power supply
●Transparent OLED
●Color: Light Blue
Model :
BL12856A
The module dimension of UL12856A is 42.04 x 63.22 mm and Active Area is 35.05 x 15.32 mm.
It has built-in IC SSD1309 and it supports SPI interface.
UL12856A required + 1.65V ~ 3.3 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL12856A is 1.51 inch 128x56 dots light blue color Graphic OLED Display Modules.
It has built-in IC SSD1309 and it supports SPI interface.
UL12856A required + 1.65V ~ 3.3 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL12856A is 1.51 inch 128x56 dots light blue color Graphic OLED Display Modules.
