128x96 OLED LCD Modules | BL12896A
●OLED Display 128 x 96 dots
●Built-in controller SSD1329
●+3.3 V power supply with Built-in positive voltage
●1/96 duty cycleColor: white or blue
●Option: external positive voltage for LCD
●Option:SPI interface
●16 Gray Scale
●Built-in controller SSD1329
●+3.3 V power supply with Built-in positive voltage
●1/96 duty cycleColor: white or blue
●Option: external positive voltage for LCD
●Option:SPI interface
●16 Gray Scale
Model :
BL12896A

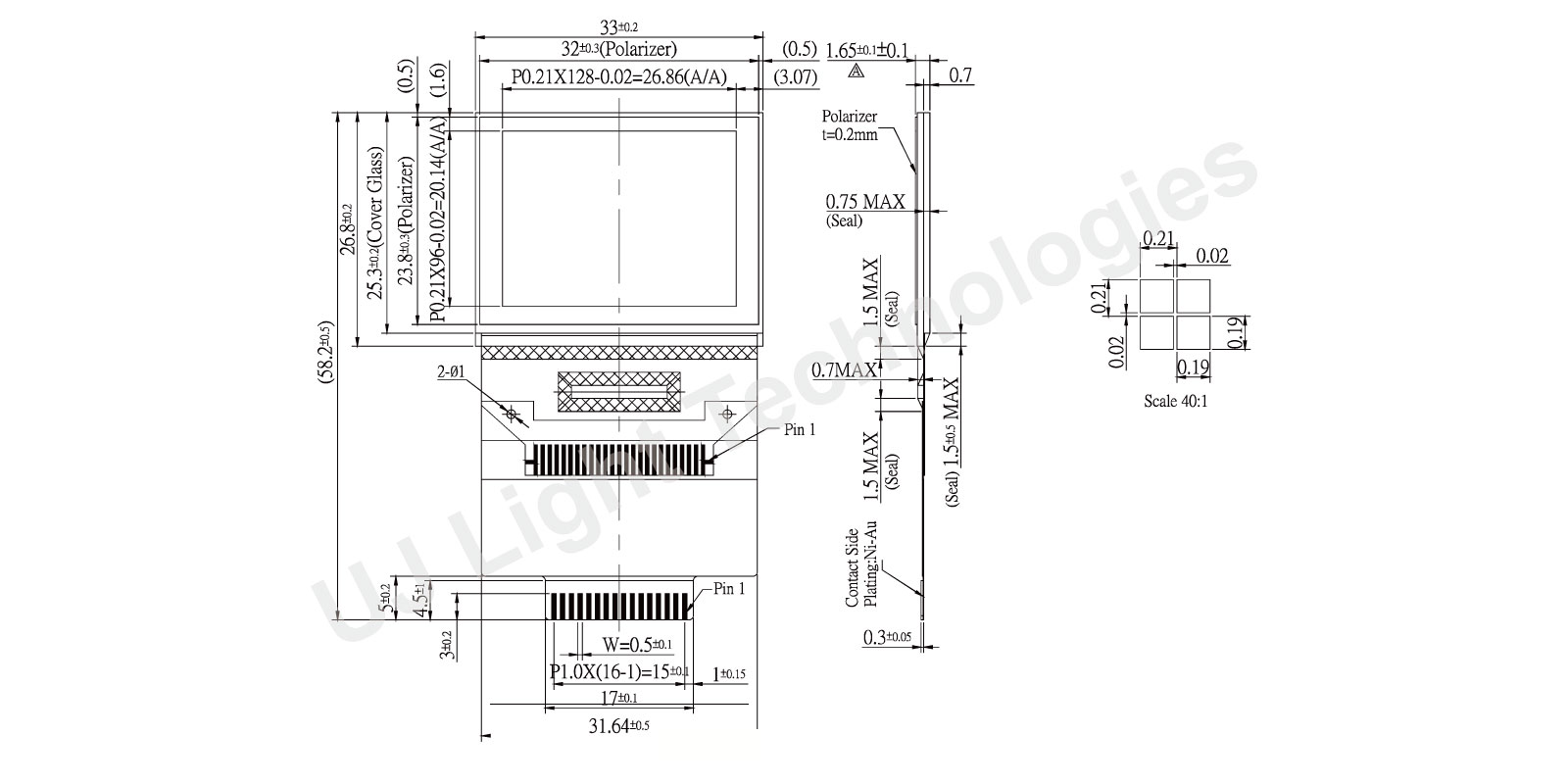

The module dimension of UL128696A is 33.0 x 26.8 mm and Active Area is 26.86 x 20.14 mm.
It has built-in IC SSD1329 and it supports Parallel/ SPI interface.
UL128696A required + 3.3 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL128696A is 1.32 inch 128x96 dots Graphic OLED Display Modules.
It has built-in IC SSD1329 and it supports Parallel/ SPI interface.
UL128696A required + 3.3 V power supply.
As most industrial OLED displays, the BL-series module offers extremely wide operating temperature range of -40 to + 80°C.
UL128696A is 1.32 inch 128x96 dots Graphic OLED Display Modules.
